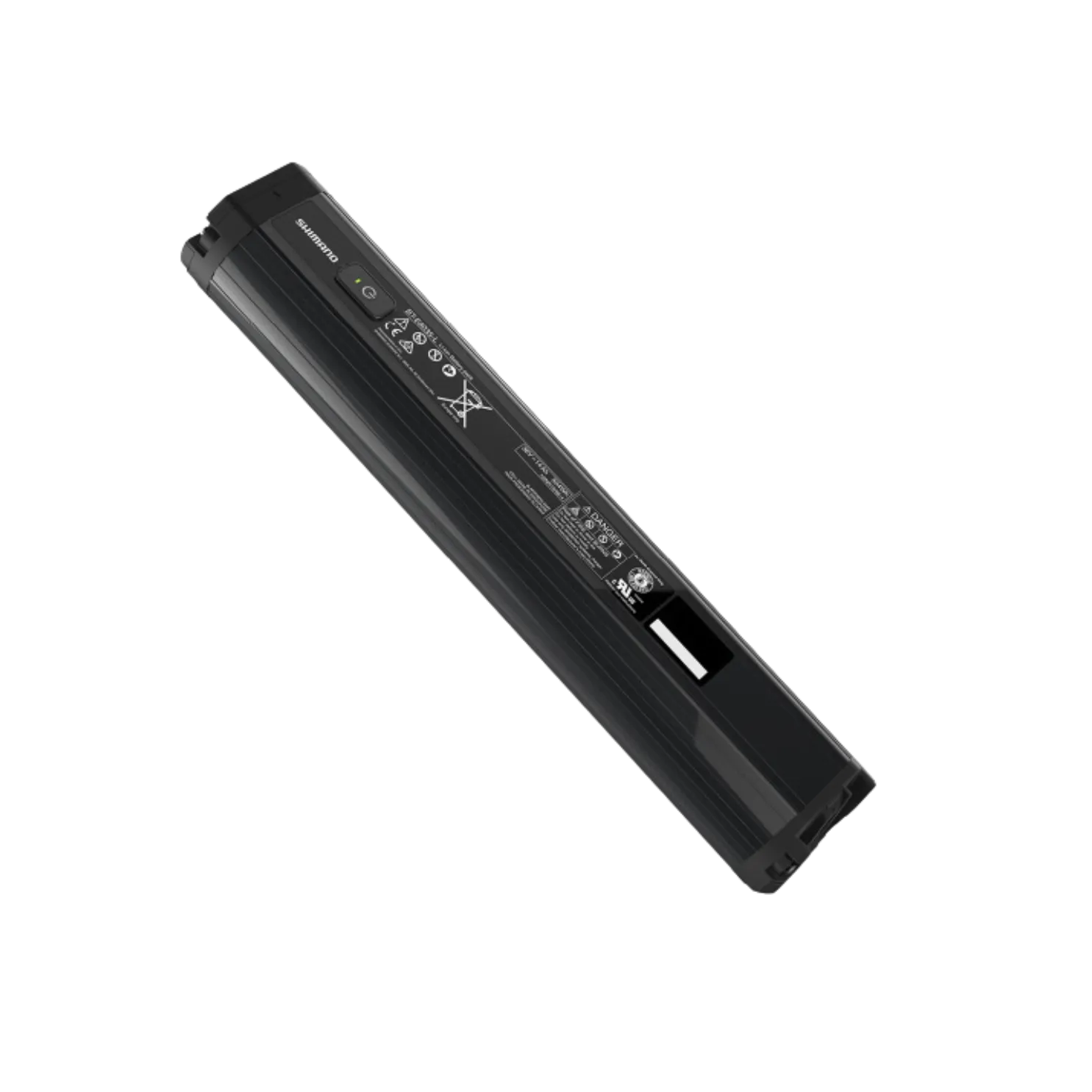

With its flat design, the BT-E8035-L battery from Shimano is not only ideal for mounting in the down tube, it also allows manufacturers to design slimmer frames. Concerning the housing dimensions, the long version of the BT-E8035 battery is same size as the BT-E8036 model.
Thanks to the 1st generation STePS battery management system and the capacity of 504 Wh, riders benefit from both an increased range and shorter charging times. And the compact lithium-ion battery is also durable: even after more than 1,000 charging cycles, 60 % of the original capacity is still retained.
Features
Shimano Steps BT-E8035-L Integrated battery for down tube 504Wh
Looks identical to BT-E8036 (630Wh) and fits bikes that use this battery
Specifications
Area of Application: E-bike MTB
Group: Shimano Steps E8000/EP8
Model: BT-E8035-L
Version: Integrated
Battery Type: Li-Ion
Rated Voltage: 36V
Nominal Capacity: 14Ah
Nominal Capacity: 504Wh
Charging Time: About 5 hours
Compatible Chargers: EC-E6000, EC-E6000-3 (for Japan), EC-E6002, EC-E8004
Compatible Battery Holders: BM-E8030-A, BM-E8030-B, BM-E8031-A, BM-E8031-B
Color: Black
Scope of Delivery: 1 Shimano Steps frame battery BT-E8035-L integrated
Mfr Claimed Weight
TBC
