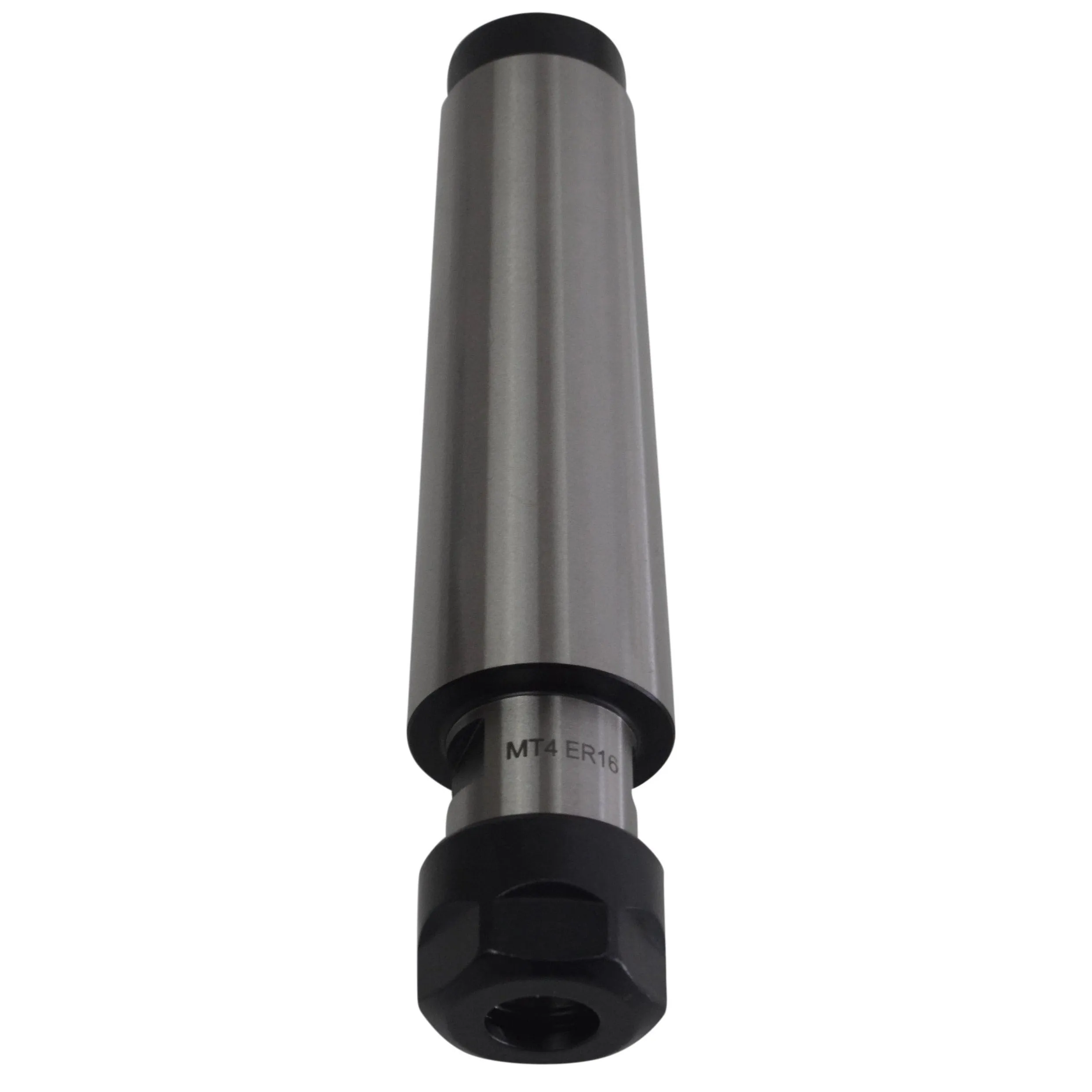

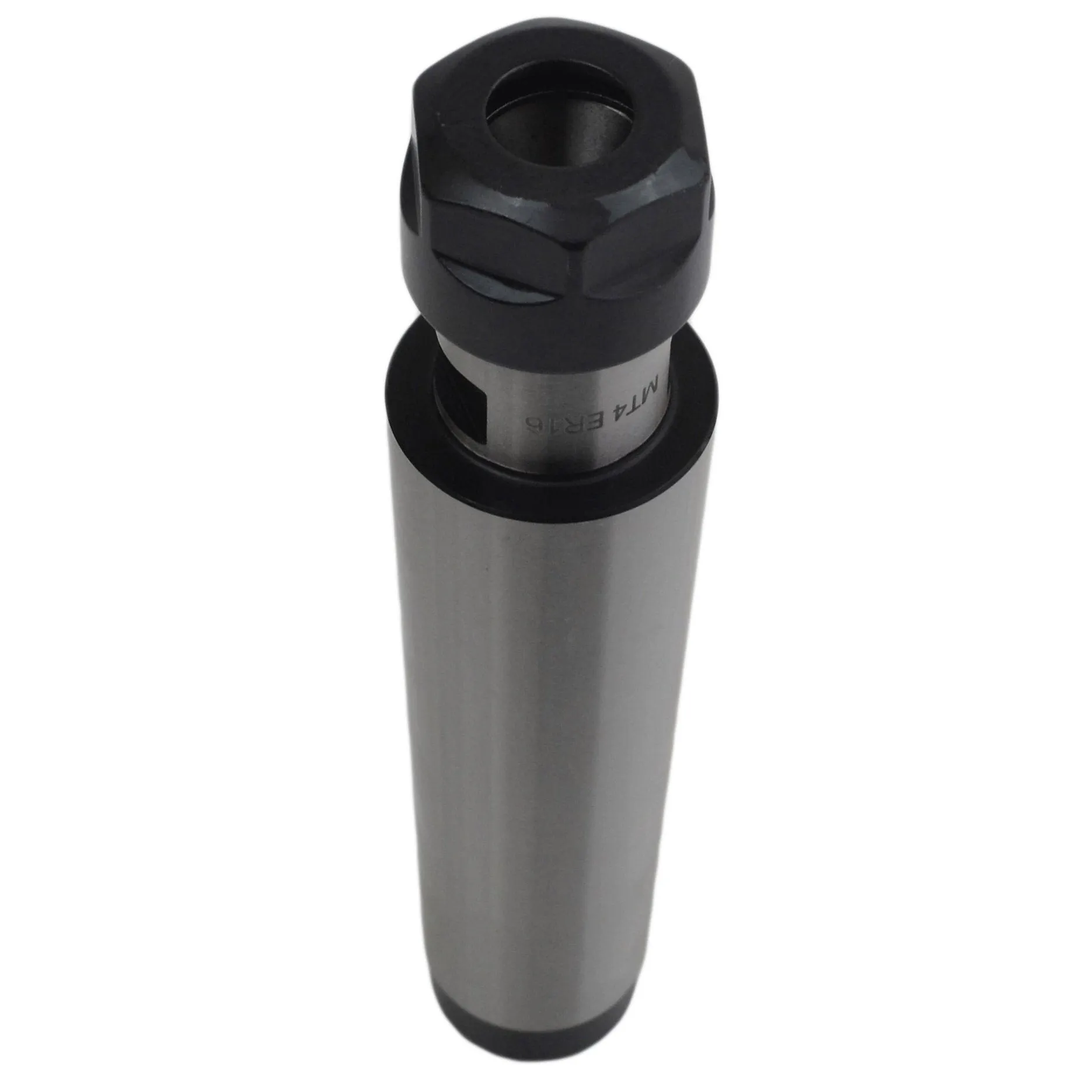

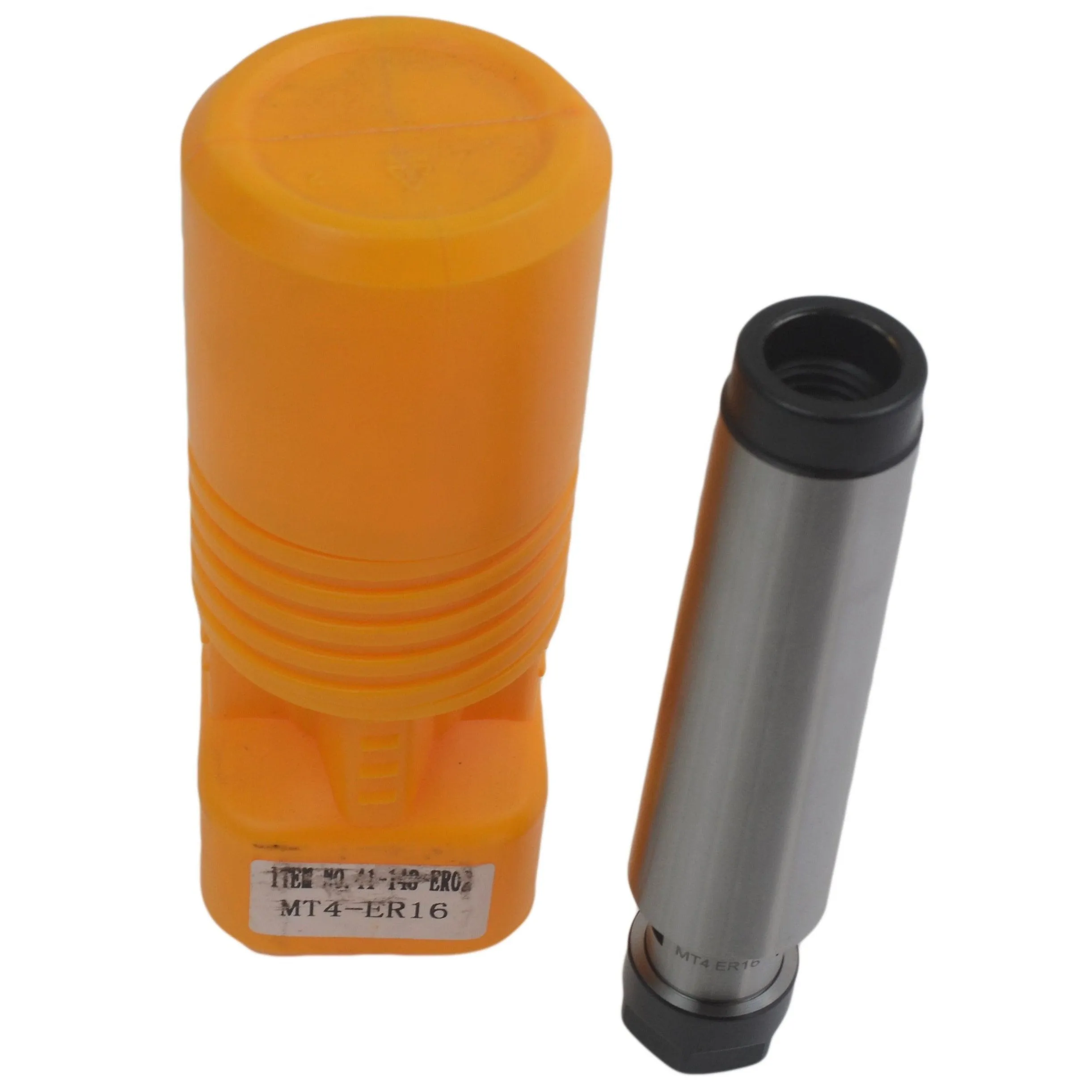

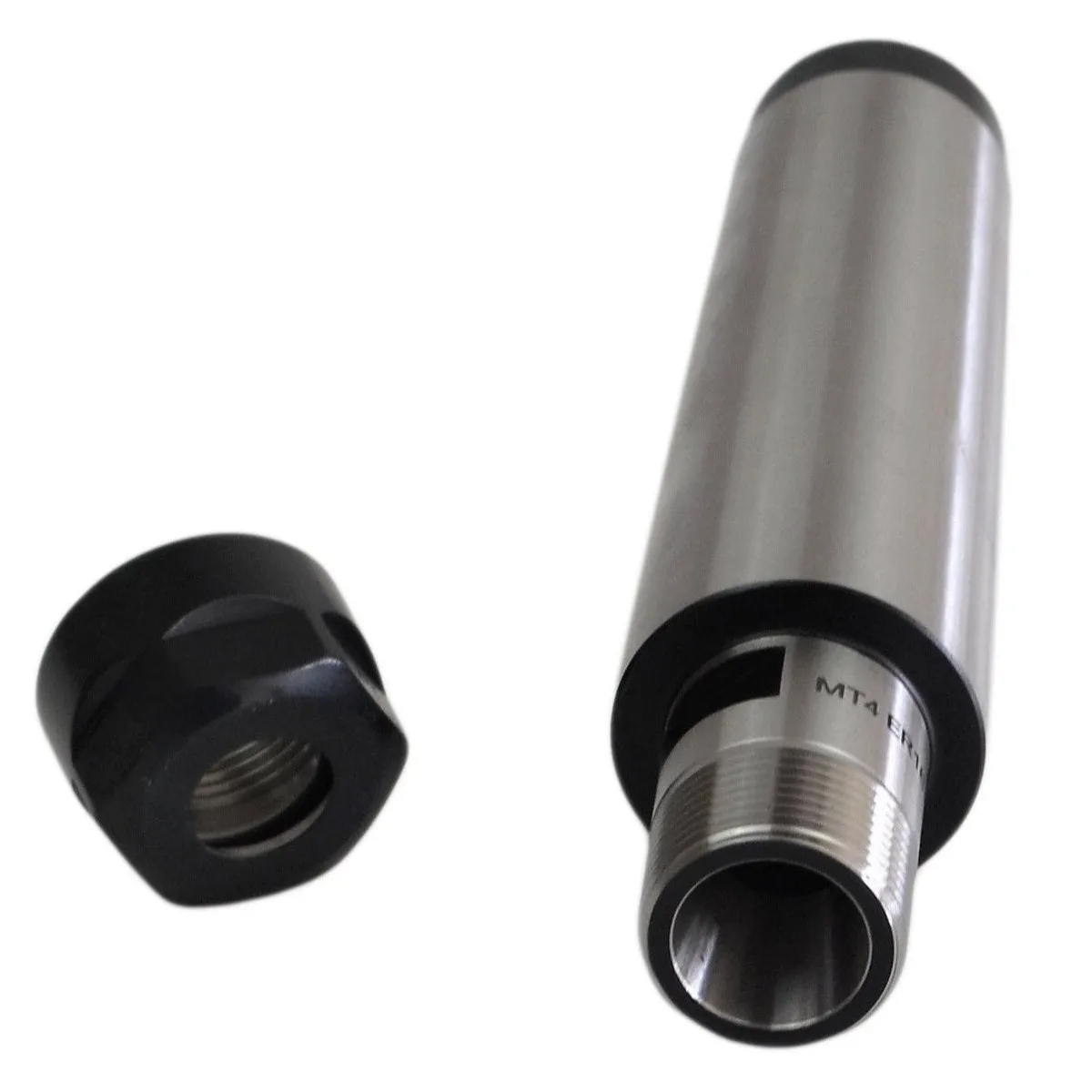

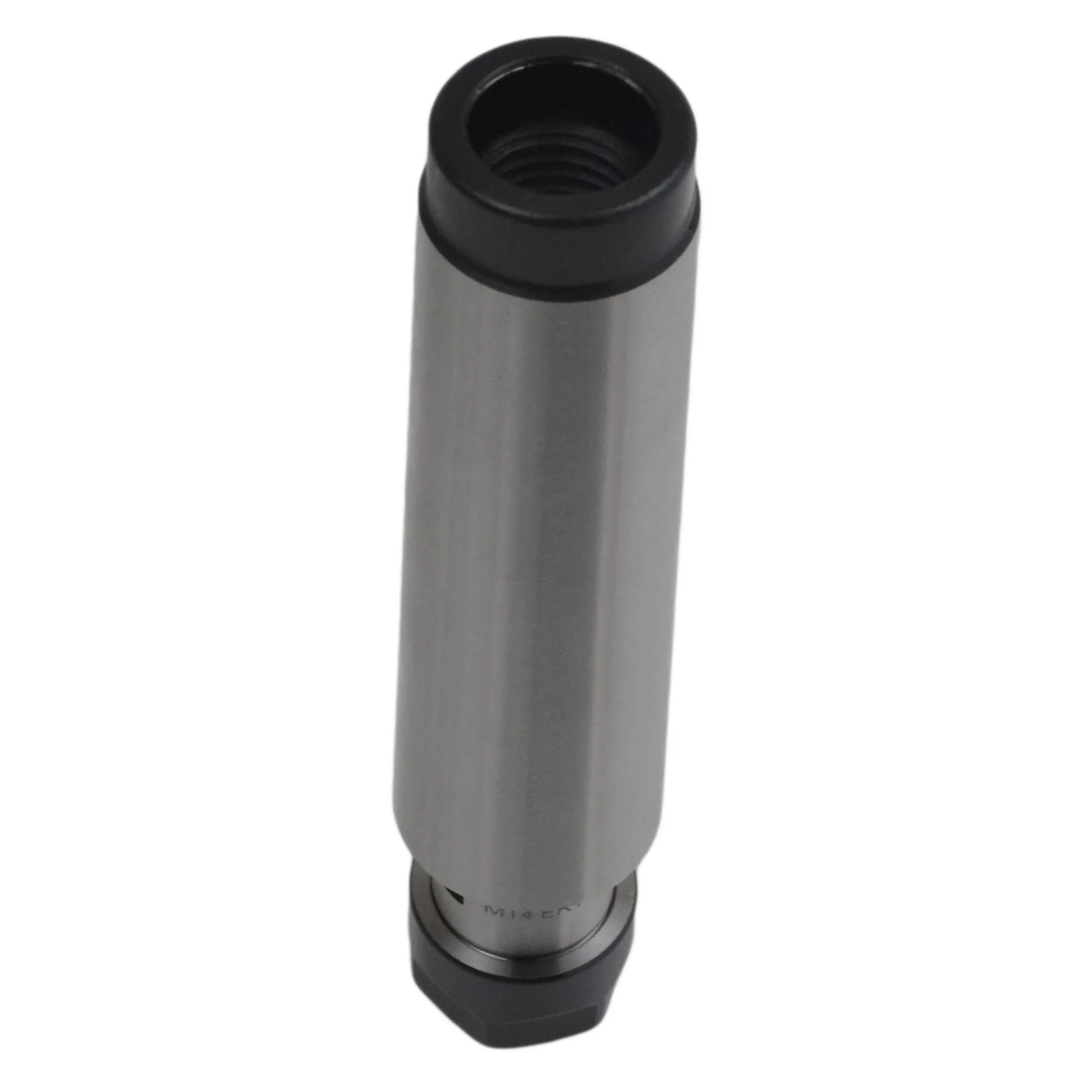

Collet Chuck ER16 Holder MT4 – Precision Engineered for Accuracy and Durability
The Collet Chuck ER16 Holder MT4 is a high-performance tool designed for precision and durability in a variety of machining applications. Made from hardened and precision-ground materials, this collet chuck ensures excellent accuracy and reliable performance in demanding environments. Ideal for both industrial and commercial use, this collet chuck provides superior holding power and minimizes tool run-out.
Key Features:
- Hardened Precision Ground: Built with durable materials for superior hardness and wear resistance, ensuring longevity and consistent performance.
- Run-Out Tolerance: Achieves a minimal run-out of just 0.01 mm (0.0006"), delivering high precision and reliable results.
- ER16 Collet Type: Compatible with ER16 collets, offering excellent versatility and secure tool clamping for various applications.
- Morse Taper 4 Shank: The Morse Taper 4 shank ensures a secure fitment in compatible machine tool holders, providing stable and accurate operation.
- M16 Drawbar Thread: Features an M16 drawbar thread, enabling easy installation and removal while ensuring a firm hold on the tool.
- Compact Dimensions: With a head diameter of 28 mm and an overall length of 147 mm, this collet chuck is compact yet powerful, perfect for precision machining tasks.
